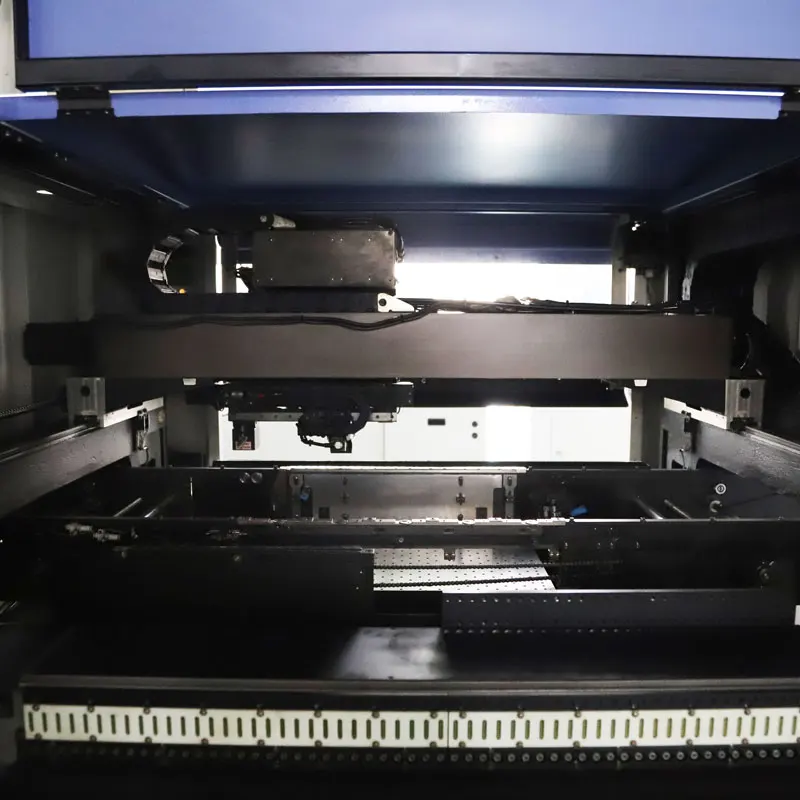

SMT Full Automatic High Speed pick and place machine I-PULSE Chip Mounter -M2-Plus

FOB Reference Price:Get Latest Price
$1.00 - $10.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
New York, United States
Brand Name:
I-pulse
Model Number:
M2-Plus
Name:
I-PULSE Chip Mounter -M2-Plus
Part No.:
M2-Plus
Lead time:
2 weeks After Payment
Condition:
Original Used
Type:
SMT pick and place machine
Usage:
SMT Machine
Quality:
100% Tested
Shipping ways:
DHL,FedEx,TNT,UPS,EMS,by SEA,by Air
Supply Ability
Supply Ability:
50 Piece/Pieces per Year
Packaging & Delivery
Packaging Details
Normal Packing
Port
Shenzhen China
Product Description



I-Pulse- M2 Plus Specification
Board sizeL50xW50mm – L460 xW410mm
Board thickness0.5mm-2.0mm
Flow directionLeft to right
Conveyor speedMax. 420mm/sec, speed variable, soft stop fuction
Placement speed A (NB1)0.13 sec/CHIP, 0.38 sec/TSOP32
Placement speed B (NB2)0.54 sec/QFP100 (when using the optional fixed camera FCO5)
Placement accuracy A (u+3o)CHIP +0.05mm
Placement accuracy B (u+30c)QFP +0.03mm (when using the optional fixed camera FCO3)
Placement angle+180’, resolution 0.015
Z-axis control6-head independent servo motors, resolution 0.006mm
Component height15mm (Preplaced components max. 10.5mm)
Components applicable0603 (option) – SOP, PLCC, QFP, BGA, CSP, connector, and odd-form components
Component carriers8-56mm tape, stick, tray
Drawback checkVacuum check and vision check
Multi language displayJapanese, Chinese, Korean, and English
Board locating methodBoard edge or tooling hole (option), front reference
Component types120 types (8mm tape conversion)
Board transfer height900+20mm
Dimensions, weightL1,750XD1,530XH1, 510mm, approx. 1,950Kg
Power, consumption, capacity3phase 200V (Option: 208, 220, 240, 380, 400, 415, 440V) +10% 50/60Hz, 4.0KVA, 6.0KVA
Air and consumption0.5MPa, 692/min A.N.R.
