Automatic PCB magazine unloader machine for SMT assembly production line

FOB Reference Price:Get Latest Price
US $2,000-3,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Morel
Model Number:
UL-M-BN / UL-L-BN / UL-LL-BN / UL-XL-BN
Model:
UL-M-BN / UL-L-BN / UL-LL-BN / UL-XL-BN
Product name:
Automatic PCB magazine unloader machine
Warranty:
18months
Condition:
Brand new
Lead time:
4-7days
Packaging:
Vaccum packing
Usage:
SMT assembly line
Quality:
100% Tested
Certification:
ISO9001 CE
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
Vaccum packing
Port
Shenzhen
Lead Time :
Shiped in 7days after payment
Product Description

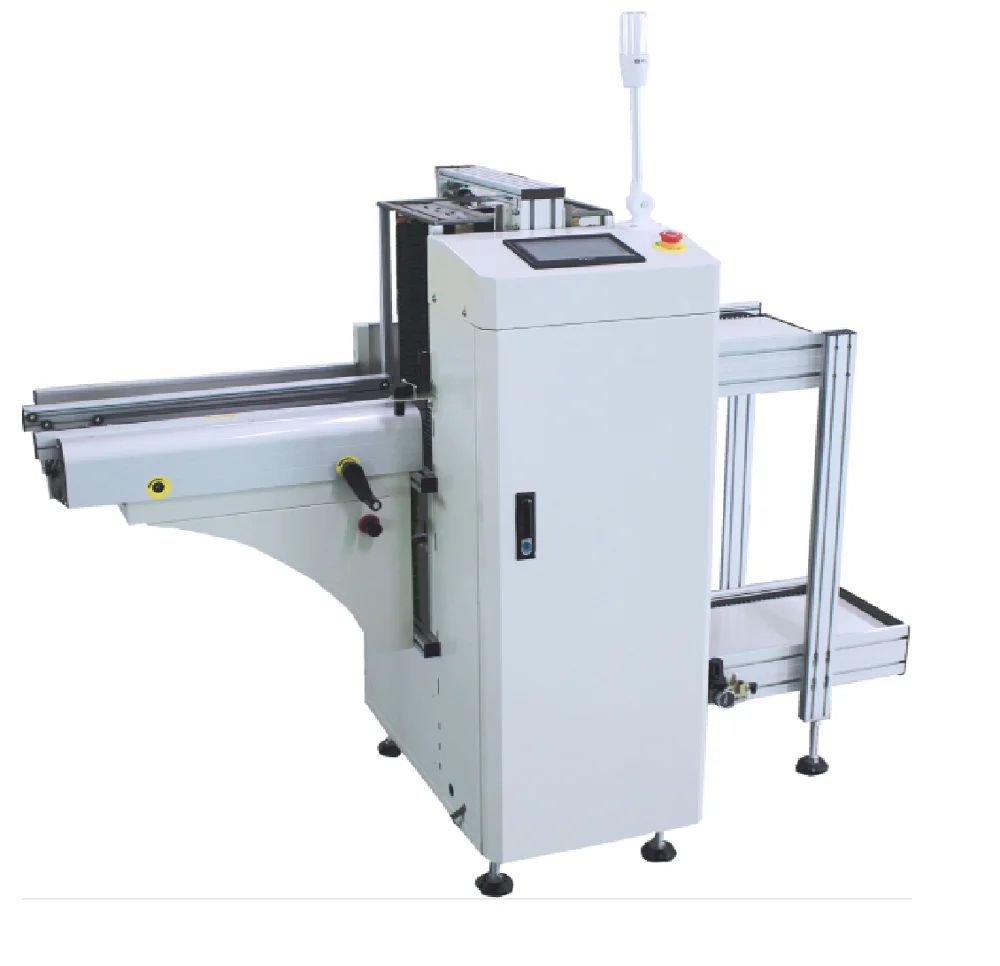

Full Automatic Unloader



1. Special aluminum alloy mechanism, more clearly understand MAGAZINE operation state.

2. Stable casting platform structure design, improve the stability of the equipment.

3. Panasonic PLC control, multi-function electrical circuit and procedural design, stable performance to ensure smooth and smooth production line.

4. Humanization design, 4 PITCH options

5. Standard SMEMA

6. Material box is made of engineering flat plastic adhesive tape.

7. Can be customized according to customer requirements inventory number.

8. Adjustable board speed control.

9. Three- point positioning, up and down pneumatic clamping, ensuring accurate location of material box.

10. Designed gas circuit for transmit PCB smoothly and stably.

Specification / TypeUL-M-BNUL-L-BNUL-LL-BNUL-XL-BN
DescriptionThis device is used in the SMD production line PCB board storage operation
PCB Size(mm)50*50~330*25050*50~445*33050*50~530*39050*50~535*460
Transport Height(mm)900±20(std)
Transmission Time6.0 sec
Step selection10. 20. 30. 40mm selectable
Power SupplyAC 110/220V±10V,50/60HZ
Machine Size(mm)1680(L)*765(W)*1250(H)1920(L)*845(W)*1250(H)2160(L)*910(W)*1250(H)2160(L)*975(W)*1250(H)
Weight(KG)230260290320
Air Pressure4-6bar
Air SupplyMax 10L/min
PCB ThicknessMin 0.6mm
Transmission DirectionLeft to Right (optional: Right to Left)
